MI-DL0113 DL1133-AKF0AA0HHKSC-362mm - Interroll United States Sales

BRAND	Interroll
Product	MI-DL0113 DL1133-AKF0AA0HHKSC-362mm

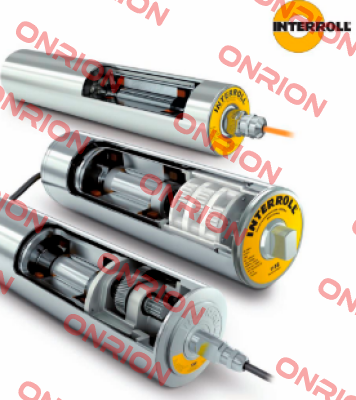

Description	DL 0113 Asynchronous 3-Phase
Internal code	ONR4186773
Technical specification	SL Tube length 340.0 mm end face width between covers 362.0 mm EL/LW/BF installation length 368.0 mm AGL axle total length 408.0 mm Power 160 W, winding number of pins 4 Torque [Nm] 42.3 Belt pulling force 678 N Gear Ratios 44.09 Speed at frequency 1 0.20 m/s Frequency 1 50 Hz external connection diagram E33 high voltage 400 V Rated current, high voltage 0.57 A Speed at frequency 2 0.24 m/s Frequency 2 60 Hz high voltage 2 460 V Steel pipe material: St37-2/AISI 1015 Tube diameter A 125.0 mm pipe diameter B 125.0 mm Tube shape cylindrical Pipe Option Type Longitudinal Grooves Standard \|_\| Coating material NBR rubber coating hardness 70 Shore A Coating paint white coating process hot vulcanized Cover A Material ALU EN-AC44300/AL230 Cover B Material ALU EN-AC44300/AL230 Butt plate A Material Aluminium Butt plate B Material Aluminium Cap A Diameter 35.0 mm Cap B Diameter 35.0 mm Cap A spanner width 21.0 mm cap B spanner width 21.0 mm Cap A spanner length 20.0 mm cap B spanner length 20.0 mm Oil type mineral oil Electrical connection butt plate with cable slot Power cable length: 3.0 m, power cable type, unshielded; not halogen-free

Please Contact Us to Order to offer best price and delivery time for Interroll - MI-DL0113 DL1133-AKF0AA0HHKSC-362mm DL 0113 Asynchronous 3-Phase number, also you may ask some other model number is well. We can offer best price, and delivery time with wide products distribution network in United States Industrial products Market.

WE SELL ONLY ORIGINAL AND NEW PRODUCTS!
