| BRAND | Schmalz |

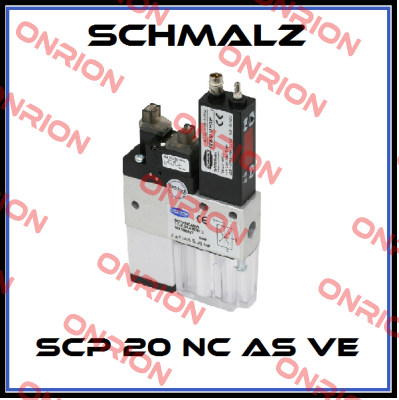

| Product | SCP 20 NC AS VE |
| Description | Compact ejector |
| Internal code | ONR532090 |
| Weight | 1 |
| Technical specification | Technical Data Attribute Value Nozzle diameter 2 mm Degree of evacuation 85 % Suction rate (max) 116 l/min Suction rate (max) 7 m³/h Air consumption (during evac.) 190 l/min Air consumption (during evac.) 11.4 m³/h Air consumption (blow off) (max) 200 l/min Noise level (workp. gripped) 76 dB Noise level (free) 78 dB Pressure range (operating pressure) 5.0 ... 6.0 bar Int. hose diameter (recom.) comp.-air 4 mm Int. hose diameter (recom.) vacuum side 9 mm Weight 0.465 kg Ambient temperature 0 ... 45 °C Control Normally closed Pressure range (operating pressure) 72.5 ... 87.0 psi Suction rate (max) 4.096 cfm Air consumption (during evac.) 6.709 cfm Air consumption (blow off) 7.062 cfm Product family SCP |
Please Contact Us to Order to offer best price and delivery time for Schmalz - SCP 20 NC AS VE Compact ejector number, also you may ask some other model number is well. We can offer best price, and delivery time with wide products distribution network in United States Industrial products Market.
